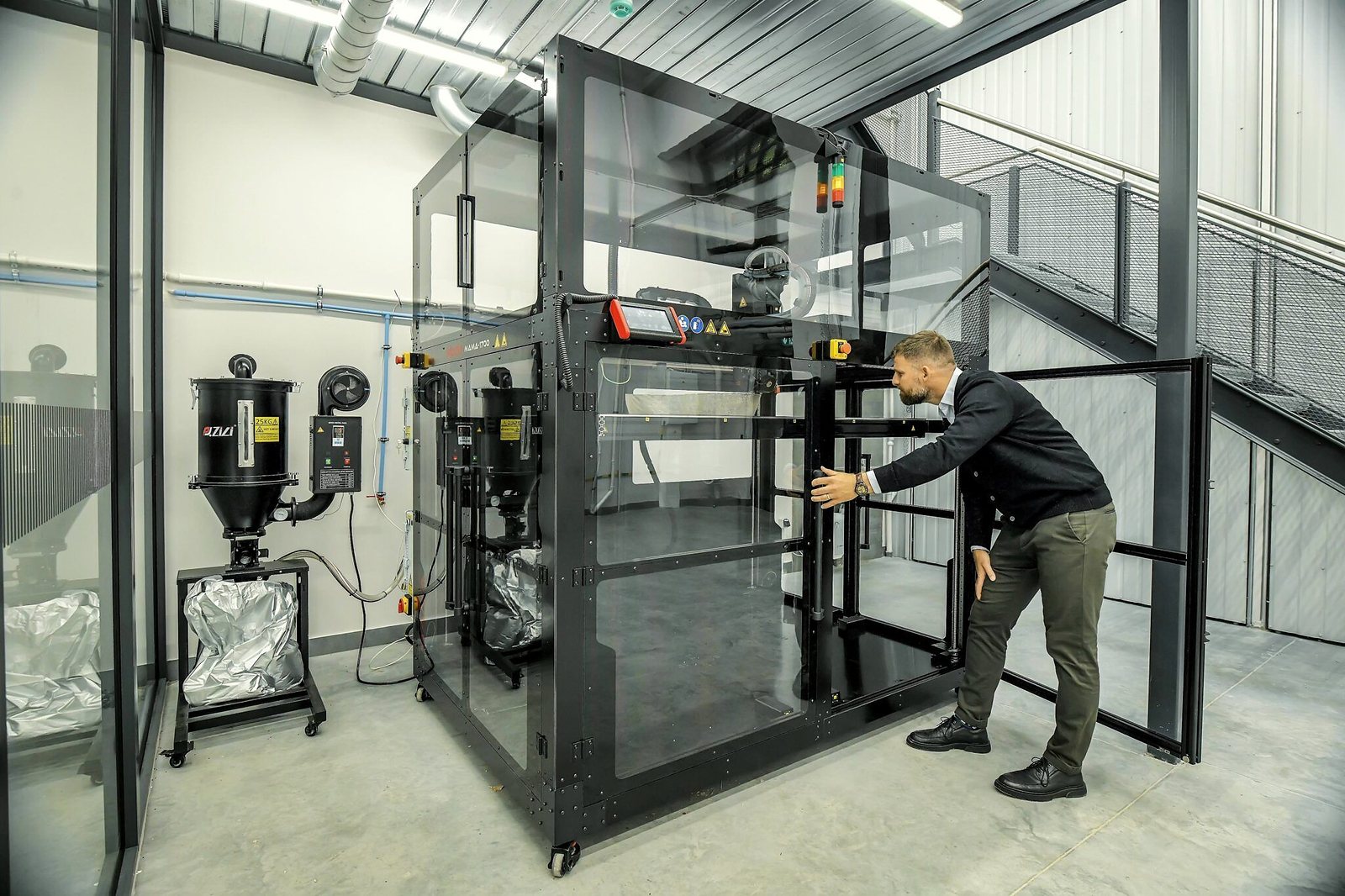

Modix MAMA-1700 Pellet 3D Printer (FGF Technology)

MAMA-1700 Pellet 3D Printer

The MAMA-1700 is Modix’s latest innovation, primarily designed for FGF (Fused Granulate Fabrication) technology. It also features a high-flow, interchangeable filament extruder, providing greater versatility for printing highly detailed 3D models. As the flagship model in Modix’s new line of 3D printers, the MAMA-1700 brings next-level capabilities to large-scale 3D printing applications.



Discover the Power of Pellet 3D Printing

The MAMA series is primarily engineered to print with a heavy duty pellet extruder, significantly boosting print speeds and reducing costs. With Modix’s FGF pellet 3D printer, you can create life-sized objects in hours rather than days, unlocking new possibilities.

Benefits of pellet 3D printing

  • Speed: Print large objects in hours, not days.
  • Cost-Efficiency: Reduce printing costs to a few dollars per kg.
  • Material Versatility: Access a wider range of materials, including eco-friendly recycled options, with a pellet extruder.

Sample prints

Mold

Low temperature Mold made of wood filled pellet. Wood filler makes it very easy for post processing including sanding, drilling etc.

  • Length: 1.4 Meter, Weight 7 kg
  • Print time 5 hours
  • nozzle – 3mm, extrusion width – 4mm
  • layer height – 2mm
  • Wood PLA

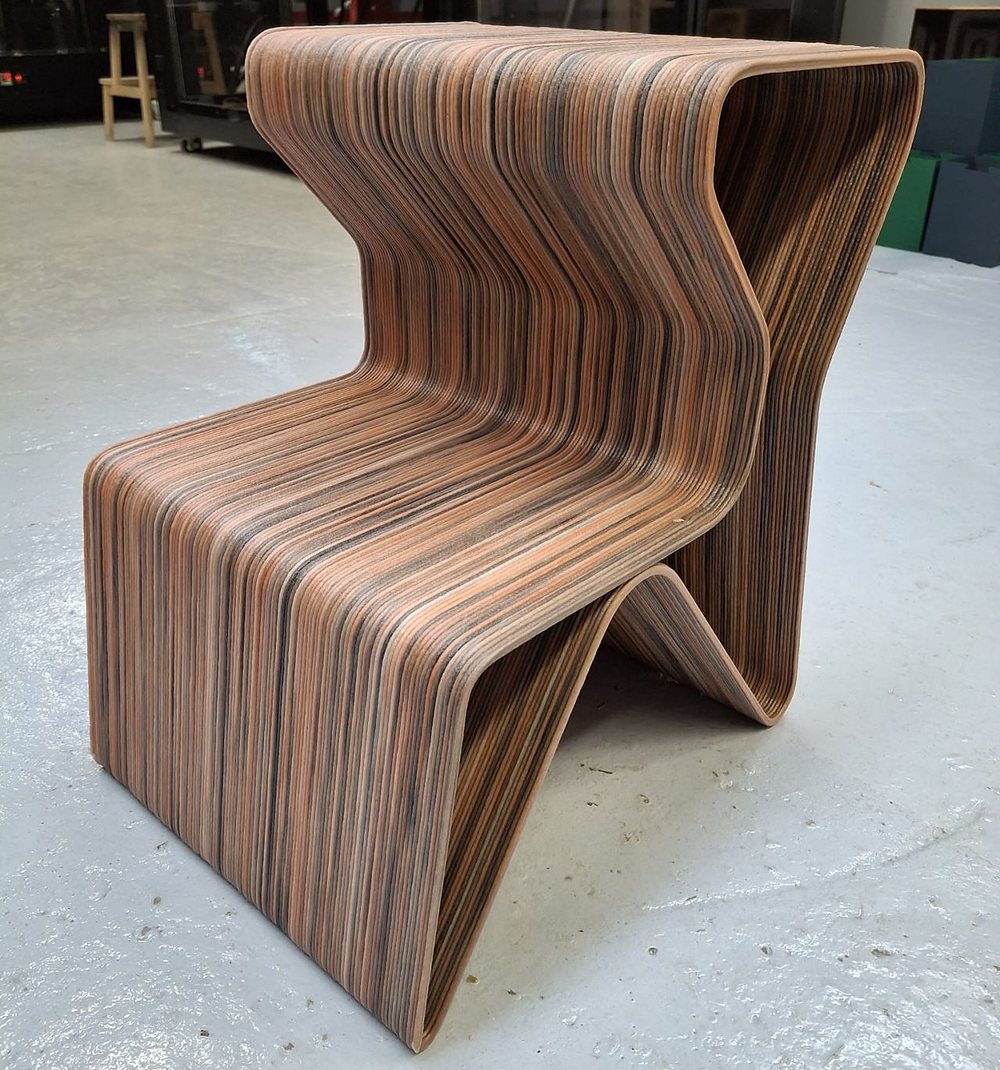

Furniture & Decor

Printing various decoration and furniture made of recycled plastic is gaining popularity.
Mixing various masterbatch (pigments) in one print can generate appealing color effects.

  • 4.5 hours
  • 5.5 kg
  • Nozzle – 5mm, extrusion width – 10mm
  • layer height – 3mm
  • PLA with pigment and matt additives

Signage

Various large letter, logos and symbols made with flame redundant material as required for installation in public locations.
Print parameters for the bat sign:

  • 8.75 hours
  • 10.1 kg
  • nozzle 5mm, extrusion width – 8mm
  • PLA with White masterbatch

MAMA-1700 Specifications

  • Print Volume: 1.7 x 1.0 x 1.0 meters (XYZ)
  • Printer Dimensions: 2.1 x 1.53 x 2.35 meters (XYZ)
  • Enclosure: Included
  • Pellet Print Head (FGF): Dyze Design Pulsar
    • Flow Rate: 500 mm³/s, up to 3 KG/hour
    • Nozzles: 3mm & 5mm. 1mm nozzle is available as an add-on
    • Sensors: Pellets runout & pellet extrusion clog detection
  • Filament Print head (FFF) – Modix Griffin Ultra
    • Flow Rate: 160 mm³/s, up to 500 gram/hour
    • Nozzles: 1.6mm. Smaller nozzles are available as an add-on
    • Sensors: filament runout and filament extruder clog detection
  • Material Compatibility (FGF&FFF): PLA, ABS, TPE, TPU, PVA, HIPS, PC, PETG, Nylon(PA), glass  & carbon fiber filled, and recycled options
  • Required: Air compressor (not included)
    Required compressor specs: 3.5 HP, 24 liter/6.3 Gallon
  • Motion system: Closed loop nema23
  • Electronic controller: Duet 6HC
  • Optional Add-Ons: Air filter, additional nozzles, and more
  • Future Add-Ons: IDEX with pellets or filament
  • Reliability – The printer is equipped with pellet extruder clog and pellets supply runout detection, allowing the printer to automatically pause and wait for operator to service the printer and continue the printing process.
  • Delivery – Self assembly kit

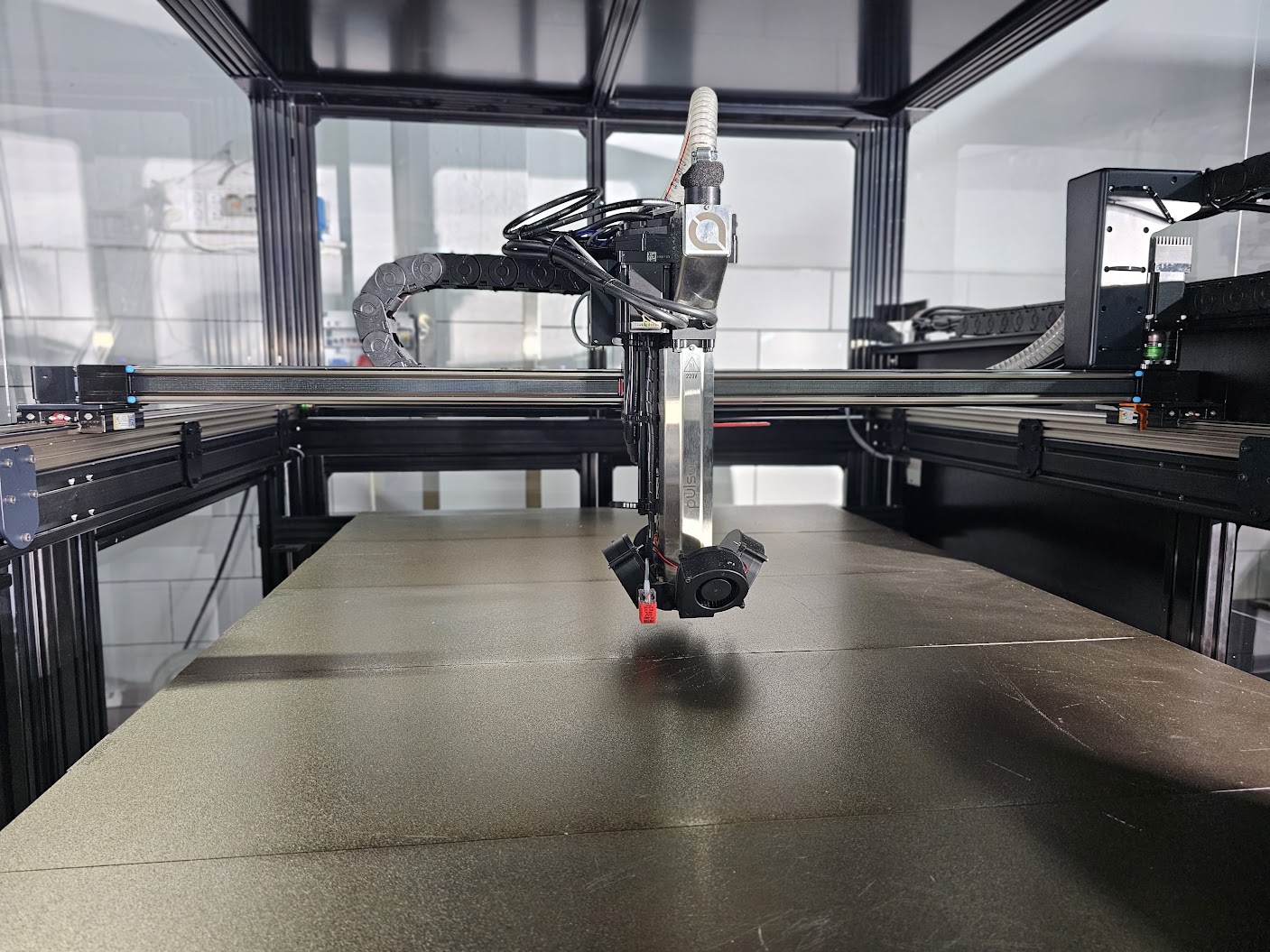

MAMA-1700 Pellet Extruder


Modix MAMA-1700 is equipped with DYZE Design Pulsar Extruder. This extruder is a high-performance pellet extruder designed for industrial-scale 3D printing. Introduced back in 2018, this pellet extruder is a proven work horse with a track record of reliability and experience.


Key Features:

  1. High Flow Rate: Capable of delivering a flow rate of up to 500 mm³/s, enabling the printing of large-scale objects at speeds of up to 3 kilograms per hour.Material Versatility: Supports a wide range of materials including PLA, ABS, TPE, TPU, PVA, HIPS, PC, PETG, Nylon, and composites such as wood, glass fiber, and carbon fiber filled. It also accommodates recycled materials, enhancing sustainability.
  2. Precision and Reliability: Built with precision engineering to ensure consistent and reliable extrusion, crucial for industrial applications.
  3. Ease of Maintenance: Designed for easy maintenance, reducing downtime and operational costs.
  4. Nozzle and Screw selection – Dyze Pulsar offers nozzles from 1mm to 5mm diameter and several screws to meet your pellet 3d printing needs.




Griffin Ultra – Filament Extruder

The MAMA line of printers offers the versatility of printing with both pellets and filament. While pellet printing has its advantages, such as speed and cost efficiency, it can present challenges when detailed printing and high-resolution, smooth surfaces are required.

To address this, Modix MAMA printers come with the Griffin Ultra high-flow filament extruder as a default alternative. This print head can be easily installed in place of the Pulsar pellet extruder, allowing owners to enjoy the best of both worlds.

IDEX and Dual-Material Printing

The MAMA line of printers will also supports IDEX (Independent Dual Extruder) technology, enabling dual-material printing. With the option to use a secondary print head, users can print with a combination of pellet and pellet or pellet with filament. This setup is particularly advantageous for support structures, as water-soluble filament can be used for easy post-processing and support removal, which is challenging with pellet prints. This capability allows for the creation of complex internal geometries and cavities, enhancing design flexibility and reducing the time and effort required for post-processing. ETA for the IDEX add-on – Q1/2025

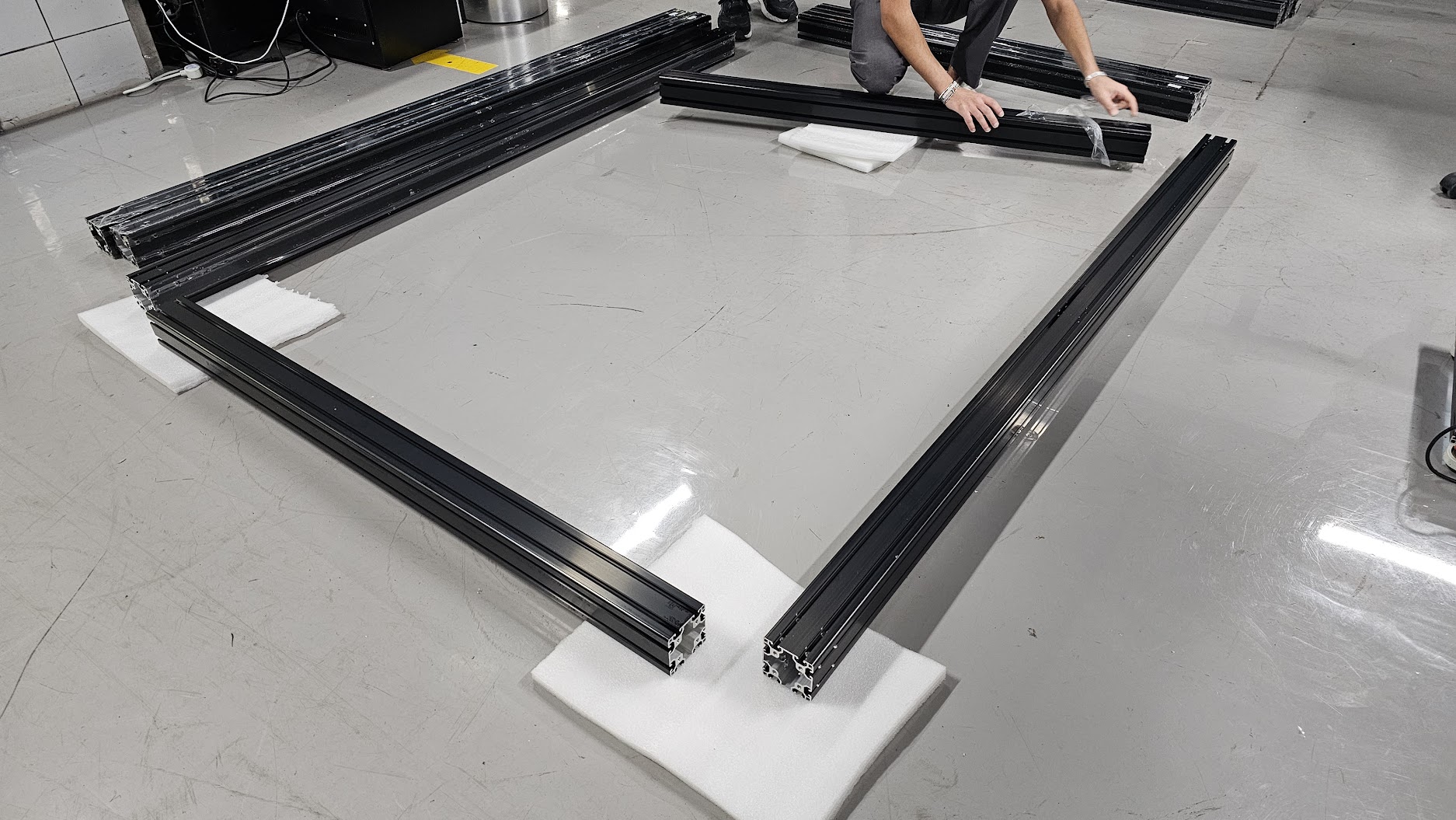

Self-Assembly – The Modular Approach

Like other Modix printers, the MAMA-1700 is delivered as a self-assembly kit. We provide a dedicated online assembly guide accompanied by photos and 3D drawings for an easy-to-follow, step-by-step installation process. The MAMA-1700 requires a team of two for one dedicated week to complete the assembly. Since 2017, Modix has been delivering high-quality kits, and our experienced support team is available for video support calls at any time.

  • Flat Packing: Compact packaging ensures the kit can fit through any door and be installed virtually anywhere.
  • Reduced Logistics Costs: The efficient packing design lowers shipping expenses.
  • Self-Maintenance: The kit’s design makes it easy to replace components, ensuring minimal downtime.
  • Future Upgrades: Designed for easy upgrades, providing a longer-term return on investment.

Assembly Services

As market leaders, we offer our customers a global network of local resellers who provide assembly and on-site services. For more information, please contact our sales team.

Future Pellet 3D Printers Models

 Similar to our filament line of “BIG” printers, Modix is developing several machine sizes for the MAMA series. The MAMA-1700 will be followed by larger and smaller MAMA Pellet 3D printers to meet the needs of various applications and industries.


Order & Lead Time

Join the experts who trust Modix and lead the future of 3D printing with the Modix MAMA-1700. The current production batch is scheduled to complete by late October, with deliveries commencing in Jan/2025.

Shipping Considerations

  • Our shipping is handled by couriers selected according to your location. Shipping terms: Incoterms 2020 DAP
  • EU customers – If you’re an EU customer, please provide us with a valid VAT number. Without it, we’ll need to add an extra 21% VAT to your order

Request A Quote & Book a Personal Demo

You are welcome to contact our sales team at sales@modix3d.com or fill the form below to coordinate a video call and product tour. We will discuss your needs, show you the print and provide you with a detailed quote.

1.7 Meter tall bookshelf, PLA pellets
