Modix BIG-120X
Generation 4
Information, photo gallery and online shop
Click to complete or edit your order:
* Scroll down for shipping options
Modix BIG-120X printer was first introduced in late 2018. Similar to BIG-60, it has all the latest components of generation 4 and enjoy the same level of modular offering to better match your needs and budget.
Here are a few unique specifications:
- Delivery: self assembly kit
- Print volume: 1,200 X 600 X 640 mm (XYZ).
- Machine Size (WxDxH): 1,556×1,060×1,506 mm
- Shipping Weight: ~170 KG (depend on add-on selection)
- Enclosure: Optional
- IDEX – Secondary print head: optional
- Z Axis Guides: Smooth rods, Hiwin rails – optional
- Additional add-ons available below.
- Price includes 12 months of warranty and lifetime support. Warranty does not include degradable (PEI sheet and nozzles) and consumables. Warranty can be extended up to two additional years, please select the desired extension below.
- Shipping cost is a regional flat fee that should be selected at the bottom of this product page after you select the required components.
- Ordering add-ons only (without a printer), will require additional shipping fee. Please contact sales for more information: sales@modix3d.com
Select Components:
Our online shop supports two payment methods: Credit card and wired bank transfer.
For more information about delivery and terms, please visit our online shop guide here.
For additional images of the printer, please check the bottom of this page.
Enclosure Add-on
The enclosure helps to improve the printer stability providing higher quality print results. It is also captures the bed heater generated heat and helps to reduce wrapping and cracks due to uneven part cooling.
* The large spool shelf shown in the image is a separate add-on.
IDEX Dual Print-head
Print with support materials to better print models with complex or internal geometries.
Don’t let the printer sit idle, use IDEX as an automatic filament changer in a case of a filament run-out.
Learn more about IDEX
Magnetic Bed
Enjoy easy part removal.
One side is coated with PEI, providing a rough bottom surface and the other side is applied with a PEI sheet for a glossy bottom surface. Order 2 pcs in order to cover.
* size 660*660 mm
* 120X requires 2 items
Z Axis Hiwin Rails
Upgrade the default Z axis smooth rods with high precision HIWIN linear rails. Tall models will enjoy smoother surface finish.
Super Volcano
Upgrade to super high flow E3D SuperVolcano including a Griffin adapter.
Including: E3D Super volcano Heat-block, 80W heater, PT-1000 Thermistor & 1mm nozzle.
Spare Griffin Hotend
Spare Griffin Hotend set.
Including: Slice eng. bi-metal Heatbreak, Modix Griffin Heat Block, 0.4 mm Nozzle, 50W Heater and PT-1000 thermistor and a silicon sock.
Griffin High Resolution Hotend
V6 (detailed) hotend allows printing tiny objects with very high accuracy.
Including: E3D V6 heat-block, Slice eng. bi-metal Heatbreak, Semitec 104NT thermistor, 40W heater, silicon sock and 0.4 mm nozzle.
Active Air Filter
Three phase filter device: Pre-filter (dust), HEPA (sub-micron particles) and active carbon filter (fumes).
Tilt Screen
A combo set of a tilt screen & a large emergency button and a frontal power switch.
Power Distribution
Better arrange all AC cables goes into the machine (bed heater, electronic box, noise reduction) into one integrated high-power power distribution unit (PDU)
8KG Spool Shelf
The default spool mounting can carry up to 3KG spools only.
This spools shelf add-on can carry up to 8kg. Spool rolls rest on bearing rollers helping the extruders to easily pull.
Basic Maintenance Kit V4
Essential components for the print head and motion system. Keep your printers running smoothly.
*Anticipated Arrival: Yearend
Extra PEI Sheet
Spare PEI sheet at size of 660x660mm. Order 2 pcs in order to cover.
Not required if you purchase the magnetic bed.
Nozzle-X Pack
Volcano Nozzle-X pack with 3 nozzles (0.4/0.6/0.8mm).
The hardened steel, nickel-plated with a non-stick coating nozzle allows printing abrasive materials (carbon fiber-filled, glass fiber-filled, wood, glitter…) without degrading, and is rated to a maximum temperature of 500°C.
Volcano Brass Nozzles
Volcano brass nozzles pack with 5 nozzles (0.4/0.6/0.8/1.0/1.2 mm).
A range of nozzle sizes for high-flow, fast printing.
* 0.4/0.6/0.8 already comes as default with the printer
Professional Services
Let us help you with optimizing design, slicing settings & material selection, and move swiftly from concept to successful completion.
Included: 3 hours video call.
Casters
The casters add-on will allow you to move the printer around with ease. The casters have adjustable leveling feet to easily adjust the balance of your printer and reduce vibrations.
Extended Warranty
One year extension of manufacturer’s warranty terms by a continuous period of 12 months starting from the expiry of standard warranty.
For two years, please add this item twice.
Shipping Options:
* Flat Fee Shipping is made with either Fedex or DHL, based on your location. Shipping terms: Incoterms 2020 DAP
* Ordering add-ons only (without a printer), will require additional shipping fee. Please contact sales for more information sales@modix3d.com
Modix BIG-120X Visual Tour
Modix BIG-120X

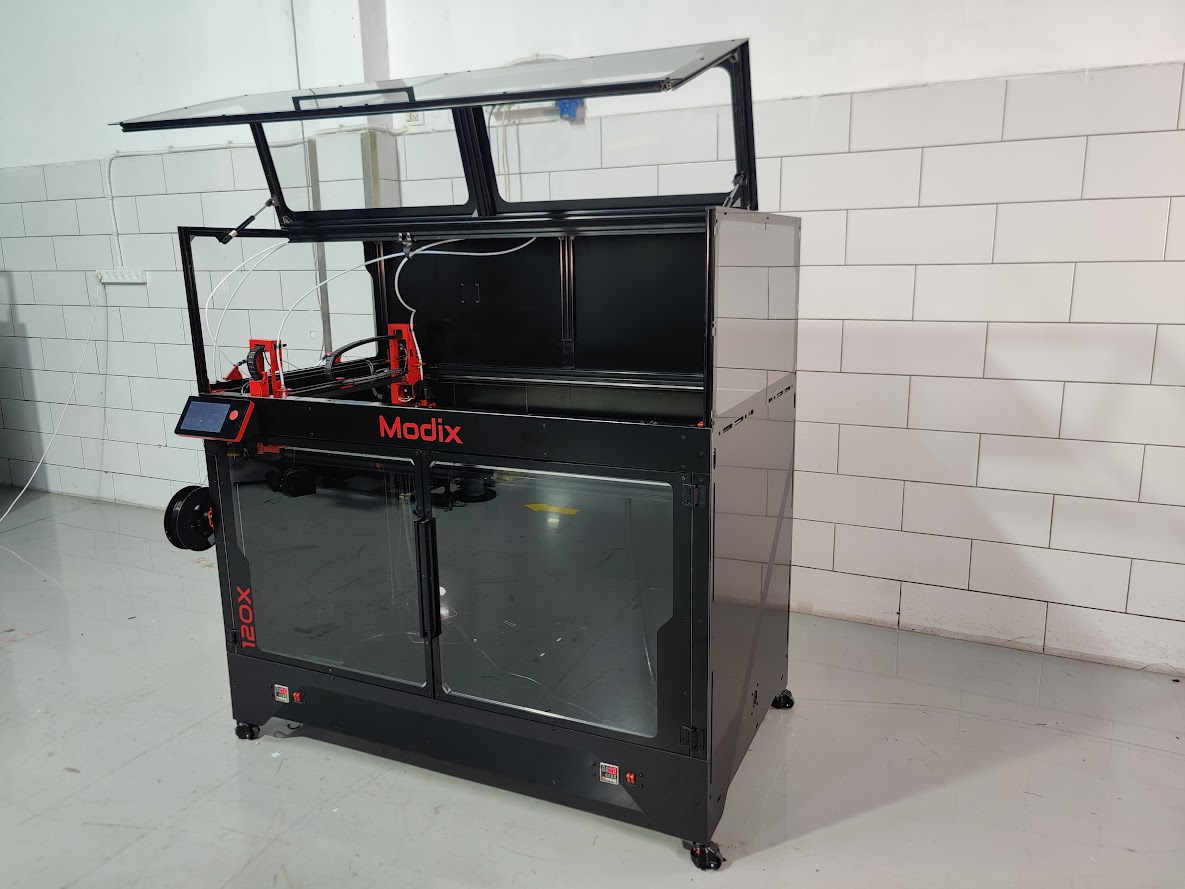

Open top lid
Modix BIG-120X IDEX configuration
Installed with the 8KG spool shelf
Easy User Interface – 7 inch touchscreen & web-access (WiFi) interface
IDEX Dual print head
Modix BIG-120X Videos
Large object printing with Modix BIG-120X
Review for Modix BIG-120X
Prototyping & product development with BIG-120X
Printing with dual print head
Printing ABS
Printing Long items
