Modix Everest
Print Tall, Print Fast

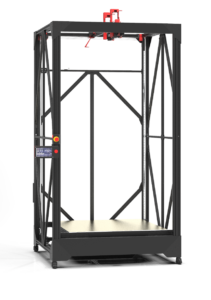

Introducing Modix Everest, the latest innovation from Modix that stands tall among our 3D printers. The Modix Everest is not just another printer; it enables printing of objects up to two meters tall in a single print. It prints fast with a new print head capable of more than 500 gr per hour and thick layers. Everest is our latest effort to push the boundaries of what’s possible in 3D printing.
Reduced Post-Processing
The Modix BIG-2Meter “Everest” eliminates the need for assembling parts from multiple smaller prints. By enabling printing of objects up to two meters tall, it drastically reduces the time spent on gluing and assembly, leading to stronger, seamless final products.
Fast Printing with Griffin Ultra
Everest is equipped with the Griffin Ultra hotend capable of printing more than 500gr per hour! This enables the rapid production of insanely tall objects, drastically reducing print times. I.e. the two meter tall bottle took only 17 hours of printing time (8.2 Kg 1.2 mm layer height, 2 perimeters – not a vase mode).
Based on the BIG-Meter
Modix Everest is based on the market leader BIG-Meter sharing gantry, electronic & heaters components. The BIG-2Meter was designed with a reinforced frame made of strong 4080 mm profiles (double the size of BIG-Meter) and therefore it prints well even without the enclosure. The included enclosure helps maintaining the internal ambient temperature. The bed is attached to the HIWIN rails installed on the Z profiles, stabilizing the entire frame while moving down during the print time.
Included add-ons
Enclosure, Modix Griffin and the new Griffin Ultra print-heads, large spool mounting (internal), Casters, Tilt screen , Z HiWin rails, Clog & Crush detectors & PT100 thermisitor.
Optional add-ons
- Magnetic bed
- IDEX dual print head
- Air filter
- Various print head add-ons and replacement parts.
Safety
We have modified the top lid to hold the filament spools inside the printer so it will not fall on anybody.
Replacing spools and other ongoing maintenance and assembly will require working at heights. Please check your local regulations for the required safety equipment and instructions when working at such heights. We have found that a platform ladder is more convenient and safer than a standard ladder, especially when you climb up with a spool in your hands.
Please note that Modix does not include a ladder or other safety equipment with the printer. We recommend sourcing these locally based on your specific safety requirements and regulations.
Specifications
- Print volume: A staggering 970 X 1,030 X 2,000 mm (XYZ)
When equipped with the Griffin Ultra print head. - Overall Size: 1356x1445x3068 mm (XYZ)
Make sure your installation site has a tall ceiling. - Weight: ~236 KG
- Assembly- Served as a self assembly kit and therefore it can enter via narrow and short doorways. Please ask us about assembly services.
- Duet3D Wi-Fi 32 bit controller & Duex5 Expansion board
- Automatic bed tilt calibration & 100 probing point for bed leveling.
- Minimal Electricity requirements – single phase, 208-240V:
- North America customers: NEMA L6-30P 30A outlet
- EU/AU/UK customers: IEC 309 32A Blue (2P+E) outlet
- Price includes 12 months of warranty and lifetime support. Warranty does not include degradable (PEI sheet and nozzles) and consumables. Warranty can be extended up to two additional years.
- Shipping cost is a flat fee no matter how many add-ons you add.
Please select the correct regional shipping rate at the bottom.
Ordering add-ons later on, will require additional shipping fee.
Griffin Ultra – 500 gr per hour
The reinforced Everest internal frame design
Pre-order Campaign
We’re excited to announce the launch of our Modix Everest pre-order campaign, starting now in mid-March 2024! Secure your order by mid-April to be among the first to receive this innovative machine. Production ends by late June and delivery is estimated for late July as it will be shipped by sea only.
To participate, simply place a 40% deposit at the time of pre-order, or you can choose to pay the full price in advance. The remaining balance for deposit orders will be due prior to shipment. Don’t miss this opportunity to be at the forefront of technology with your very own Modix Everest.
Payment options: Our online shop supports two payment methods: Credit card and wired bank transfer.
For more information, please visit our online shop guide here.
Book a personal demo – Contact our sales team and schedule a personal demonstration to answer all your questions: sales@modix3d.com.
Modix Everest
Pay full
Or pay 40% deposit
The base BIG-2Meter
3D printer. Including Full enclosure, Griffin Ultra print head, PDU and an internal spool shelf.
IDEX Dual Print-head
Print with a dedicated support material to easily print intricate models and reduce post processing time. It can also be used as automatic filament changer. Learn more
Magnetic Bed
Enjoy easy part removal and easier bed maintenance. This add-on is highly recommended as it saves a lot of time. The supplied PEI sheet works but it is degradable and may require replacement after some time of use.
Active Air Filter
Three phase filter device: Pre-filter (dust), HEPA (sub-micron particles) and active carbon filter (fumes).
Griffin High-Flow
Including: Griffin HF Heat-block, 80W heater, PT-1000 Thermistor & 1mm nozzle.
Spare Griffin Hotend
Spare Griffin Hotend set.
Including: Slice eng. bi-metal Heatbreak, Modix Griffin Heat Block, 0.4 mm Nozzle, 50W Heater and PT-1000 thermistor and a silicon sock.
Volcano Brass Nozzles
Volcano brass nozzles pack with 5 nozzles (0.4/0.6/0.8/1.0/1.2 mm).
A range of nozzle sizes for high-flow, fast printing.
* 0.4/0.6/0.8 already comes as default with the printer
Nozzle-X Pack
Volcano Nozzle-X pack with 3 nozzles (0.4/0.6/0.8mm).
The hardened steel, nickel-plated with a non-stick coating nozzle allows printing abrasive materials (carbon fiber-filled, glass fiber-filled, wood, glitter…) without degrading, and is rated to a maximum temperature of 500°C.
Extended Warranty
Extension of manufacturer’s warranty terms by a continuous period of 12 months starting from the expiry of standard warranty.
For two years, please add this item twice.
Basic Maintenance Kit
Essential components for the print head and motion system. Keep your printers running smoothly.
*Contact us for ETA
Advanced Maintenance Kit
Inside the kit, you’ll find a range of spare parts including belts, pulleys, screws, bearings, motors, printhead parts, and fasteners These components are specifically designed to fit Modix printers V4.
*Contact us for ETA
Soluble solution – 1000g
Specifically formulated to dissolve prints created with our Soluble Filament.
Submerge your 3D prints in water combined with this solution for a clean and efficient dissolution process.
Soluble filament – 500g
Print with this soluble filament to create intricate designs and supports for your 3D prints. After printing, use water + the soluble solution to dissolve it.
* Soluble Solution is not included and needs to be purchased separately.
Professional Services
Let us help you with optimizing design, slicing settings & material selection, and move swiftly from concept to successful completion.
Included: a bank of 3 hours for video calls
Shipping options:
- Our shipping is handled by couriers selected according to your location. Shipping terms: Incoterms 2020 DAP
- Customers with logistics in China can enjoy our free self-pickup since our heavy parts are made there
- EU customers – If you’re an EU customer, please provide us with a valid VAT number. Without it, we’ll need to add an extra 21% VAT to your order
Our online shop supports two payment methods: Credit card and wired bank transfer.
For more information about delivery and terms, please visit our online shop guide here.
Please select shipping option:
