Technical specifications
Six filament printers on one platform, now shipping as GEN5. Three pellet printers in the MAMA line.
BIG line, filament, GEN5
Every BIG printer ships with a Griffin print head, clog and crash detectors, a touchscreen, Ethernet and Wi-Fi, a 12-month warranty and lifetime support. The differences are size, what comes included and power.
 BIG-60The compact BIG$5,700Configure |
 BIG-120XWide format$8,300Configure |
 BIG-120ZTall format$8,300Configure |
 BIG-180XExtra-long format$17,300Configure |
 BIG-MeterCubic-meter class$15,300Configure |
 EverestTwo meters tall$27,000Configure |
|
|---|---|---|---|---|---|---|
| Build volumeX × Y × Z, mminch | 600 × 600 × 66023.6 × 23.6 × 26.0 | 1,200 × 600 × 64047.2 × 23.6 × 25.2 | 600 × 600 × 1,20023.6 × 23.6 × 47.2 | 1,800 × 600 × 66070.9 × 23.6 × 26.0 | 980 × 1,000 × 1,00038.6 × 39.4 × 39.4 | 970 × 1,030 × 2,00038.2 × 40.6 × 78.7 |
| Machine sizeW × D × H with enclosure, mminch | 906 × 1,060 × 1,50635.7 × 41.7 × 59.3 | 1,556 × 1,060 × 1,50661.3 × 41.7 × 59.3 | 906 × 1,060 × 2,06635.7 × 41.7 × 81.3 | 2,630 × 1,060 × 1,573103.5 × 41.7 × 61.9 | 1,739 × 1,424 × 1,95868.5 × 56.1 × 77.1 | 1,356 × 1,445 × 3,06853.4 × 56.9 × 120.8 |
| Shipping weightkglb | ~120 kg~265 lb | ~170 kg~375 lb | ~140 kg~309 lb | ~210 kg~463 lb | ~200 kg~441 lb | ~236 kg~520 lb |
| Print head included | Griffin print headBondtech extruder, 0.4 / 0.6 / 0.8 mm nozzles. IDEX second head optional on every model. | Griffin Ultra + Griffin1.6 mm high-flow head plus a standard head with 0.4 / 0.6 / 0.8 mm nozzles | ||||
| Enclosure | Optional | Optional | Optional | Included | Included | Included |
| IDEX second print head | Optional | Optional | Optional | Optional | Optional | Optional |
| Z-axis linear railsHIWIN upgrade over smooth rods | OptionalSmooth rods standard | OptionalSmooth rods standard | Included | Included | Included | Included |
| Tilt screen and E-stop panelwith front power switch | Optional | Optional | Included | On request | Included | Included |
| Casters | Optional | Optional | Optional | Included | Included | Included |
| 8 kg spool shelf | Optional3 kg spool mount standard | Optional3 kg spool mount standard | Optional3 kg spool mount standard | Included | Included | Included |
| Heated bed | 1 zone, 1,370 W1,200 W on 110 V. Max 120 °C | 2 zones, 2 × 1,370 W2 × 1,200 W on 110 V. Max 120 °C | 2 zones, 2 × 1,370 W2 × 1,200 W on 110 V. Max 120 °C | 3 zones, 3 × 1,370 WMax 120 °C | 3 zones, 3 × 1,000 WMax 120 °C | 3 zones, 3 × 1,000 WMax 120 °C |
| Bed leveling | Automatic bed tilt and mesh leveling on every modelBL Touch probe measures the bed shape at up to 100 or more points; four independent Z motors; automatic Z offset | |||||
| Power | 110 V or 230 V, standard outletsBed heater on a dedicated 15 A circuit, direct or through the PDU add-on | Single phase, 208 to 240 V, 32 ANorth America: NEMA L6-30P 30 A. Europe, AU, UK: IEC 309 32 A blue | ||||
| Product pages | BIG-60 page → | BIG-120X page → | BIG-120Z page → | BIG-180X page → | BIG-Meter page → | Everest page → |
Swipe the table sideways. The first column stays in place.
Prices in USD for the self-assembly kit, before shipping and local taxes. Build volumes are for a single print head. Machine sizes are with the enclosure fitted; shipping weight depends on the add-ons ordered.
New generation
GEN5 is the new generation of the Modix filament printers, and it is what ships today. Same models, same build volumes, same modular design: a new electronics and reliability generation.
Platform specifications
Shared across the six models. Where a model differs, the comparison table above has the number.
The GEN5 controller stack fitted to every BIG printer shipping today.
Industrial linear guides and ball screws on every axis.
A dedicated driver per motor makes the routines automatic.
A machined plate that stays flat at temperature.
Aluminium frame, powder-coated steel-grade brackets.
Standard outlets on the three smaller models, a 32 A circuit on the three large ones.
Open firmware, any slicer.
Standard on every printer.
Griffin print head family
Every BIG printer ships with the standard Griffin. Three more configurations share the same bracket, so the melting subsystem swaps in minutes as the application changes: fine detail one week, bulk speed the next.
The default balance of speed and detail for prototypes, tooling and production parts. Rigid heat block, bi-metal heat break, PT-1000 sensor.
A hotend 50% shorter than standard for tighter retractions, fine detail and dimensional accuracy on small parts. Drop-in upgrade.
A double-length heat block for bulky parts and thick vase-mode walls. The 80 W heater recovers fast at speed; a CNC bracket keeps the long block steady.
A complete all-metal extruder with four times the melt zone, no PTFE in the heat path and dual cooling fans. Nylon and carbon-filled compounds at 450 °C. Multi-day prints finish in hours.
Dual drive gears grip the filament from both sides for consistent feeding, 3:1 gear reduction, direct drive.
Fast heat transfer and high-temperature printing with a PT-1000 sensor. Rigidly mounted, so a collision with a thick layer does not bend the heat break.
Compatible with the full range of Volcano nozzle sizes and materials. Hardened-steel nozzles up to 450 °C for carbon and glass-filled filament.
The nozzle-to-probe offset is measured automatically, more precisely than by hand. Griffin Ultra fits GEN5 and Gen4 BIG printers, including IDEX; X travel reduces by 50 mm.
A 45 × 45 × 20 cm bottle: 77 hours with the standard Griffin at 0.3 mm layers, 17 hours with the Griffin Ultra at 1.2 mm layers. A container of the same class: 80 hours to 12. Swap the head, not the machine.

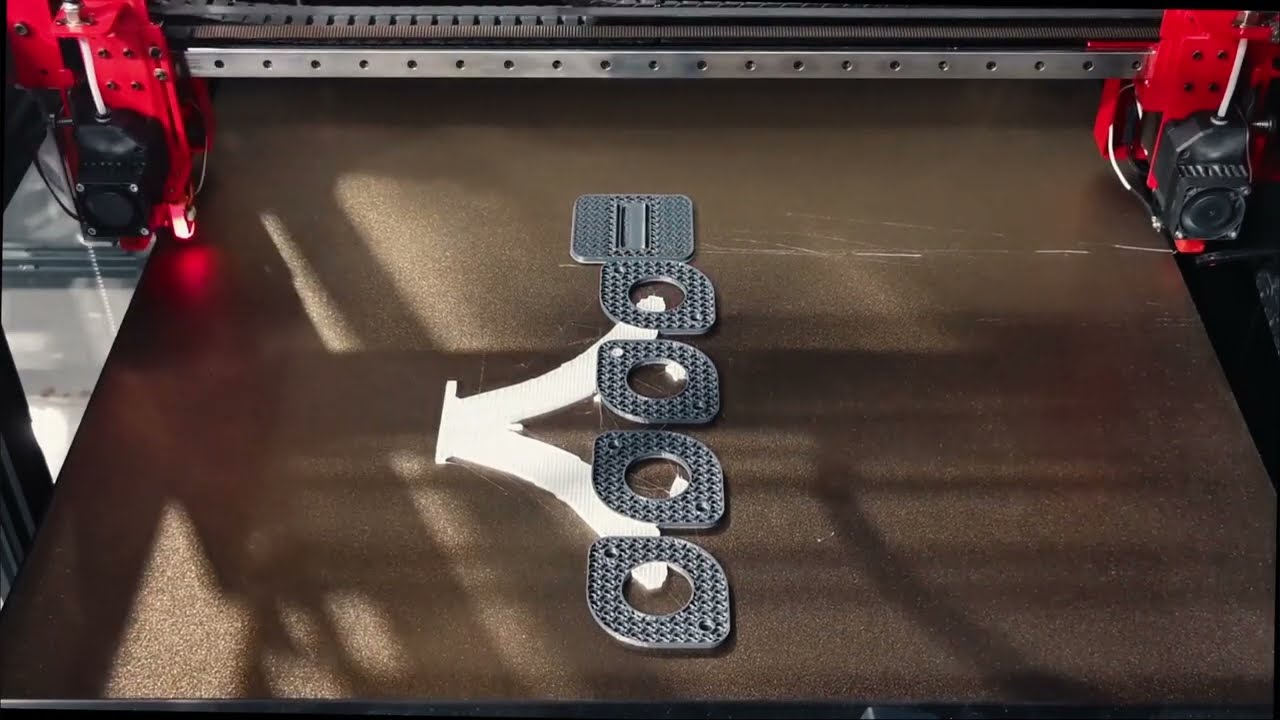

IDEX dual print head add-on
Each extruder rides its own Y carriage. While one prints, the other parks outside the print area: no cross-contamination between materials, no idle nozzle dragging through the part. Geometries that a single head cannot print. Available for every BIG model.
A second Griffin print head with clog detector, PTFE and spool mount; the secondary Y-axis motor with belts and pulleys; metal brackets for the second Y axis and both print heads; wiring, drag chains and optical end-stops.
Add-ons that change the specification
The base kit is a complete printer. These add-ons extend temperature, throughput, safety and daily handling. Current prices for your model are in the configurator and on every quote.
Captures the bed heat for a warm, stable chamber around the part and stiffens the frame. Fewer warps and cracks on ABS, ASA, PC and Nylon.
Flex the spring-steel plate and even large, high-adhesion parts release. No prying, no scraping, no waiting for the bed to cool.
Three-stage filtration draws the chamber air through a vent hose, cleans it and returns it, on a variable-speed fan so the chamber stays warm while printing.
Fully automatic inline drying with molecular-sieve technology: it removes moisture continuously while the printer runs, and the sieve never needs replacing.
The default mount takes 3 kg spools. The shelf carries 8 kg spools on bearing rollers so the extruder pulls easily through multi-day prints.
One cable to the wall for bed heaters, electronics box and air filter, with two safety circuit breakers and Duet-controlled switching of the bed heaters and the filter.
The touchscreen on an articulating arm, a large emergency-stop button and a front power switch. Machine control at the front of the printer, not inside the frame.
Replaces the smooth rods on the BIG-60 and BIG-120X with HIWIN linear rails, the same class used in CNC and semiconductor equipment. Tall parts get a visibly smoother surface.
A complete ready-to-swap hotend: swap it in minutes, service the old one at the bench, keep printing.
Hardened steel for carbon-fiber, glass-fiber, wood-fill and other abrasives that wear brass within hours, rated to 450 °C. Brass for PLA, PETG, ABS and ASA.
Basic kit: the print head and motion wear items every new machine should have on the shelf. Advanced kit: belts, pulleys, bearings, motors, print-head parts and fasteners for remote and production sites.
A time bank of video sessions with a Modix engineer for design, slicing and material choices. Guided installation and operator training at your site, quoted per location.
Materials
Any 1.75 mm filament, no lock-in. Modix supplies tested print profiles for the common materials and professional-services hours for the demanding ones.
Follow the Modix printing instructions and print.
A little know-how and the Modix user guide, or a professional-services session.
Enclosure, air filter and the Modix professional services for in-depth support.
Carbon-fiber and glass-fiber filled filaments print with the hardened-steel nozzle pack. Large parts in ABS, ASA, PC and Nylon want the enclosure to hold the chamber heat, and the active air filter to keep the room clean.
MAMA line, pellet and filament FGF / FFF
Three machines built around an 80 × 80 mm frame and a high-flow FGF screw extruder. The MAMA-1000 and MAMA-1700 pair a travelling XY gantry with a bed that moves in Z; the MAMA XL-3000 has a static bed and a gantry that travels in X, Y and Z. Each MAMA ships in the configuration you choose: a pellet head, a Griffin Ultra filament head, or two filament heads as IDEX. The MAMA line is its own platform and is not part of GEN5.
Three configurations per model, chosen at order. Pricing on request.
 MAMA-1000The cube |
 MAMA-1700Production scale |
 MAMA XL-3000Three meters long |
|
|---|---|---|---|
| Build volumeX × Y × Z, mminch | 1,000 × 1,000 × 1,00039.4 × 39.4 × 39.4 | 1,700 × 1,000 × 1,00066.9 × 39.4 × 39.4 | 3,000 × 1,000 × 1,000118.1 × 39.4 × 39.4 |
| Machine sizeW × D × H, mminch | 1,400 × 1,530 × 2,35055.1 × 60.2 × 92.5 | 2,100 × 1,530 × 2,35082.7 × 60.2 × 92.5 | Site-planning drawings on request |
| Shipping weightkglb | ~400 kg~880 lb | ~500 kg~1,100 lb | ~500 kg~1,100 lb |
| Extrusion | FGF pellet extruder, direct-drive screw, up to 3 kg/hFilament option: Griffin Ultra, up to 0.5 kg/h with 1.75 mm filament. The pellet system needs a locally sourced air compressor (3.5 HP, 24 l) | ||
| Nozzles | 3.0 mm pellet nozzle standard; 1.0 and 5.0 mm as add-ons. 1.6 mm on the filament head | ||
| Layer height | 0.4 to 1.6 mm pellet, 0.1 to 0.8 mm filament | 0.4 to 3 mm pellet, 0.1 to 1.2 mm filament | |
| Motion | Travelling XY gantry, bed moves in ZHIWIN wide rails on Z, industrial belt modules on X and Y | Travelling gantry in X, Y and ZHigh-precision industrial motion modules | |
| Frame and bed | 80 × 80 mm T-slot aluminium frame, steel-reinforced motion plateMIC6 aluminium tooling plate, moving in Z on the MAMA-1000 and MAMA-1700, static on the XL-3000. Multi-zone silicone heaters with independent control, max 120 °C. Enclosure and water cooling included | ||
| Electronics | Duet 3 with expansion board, RepRapFirmware and Duet Web ControlTouchscreen, Wi-Fi with external antenna, Ethernet, SD card. Print profiles for Cura and PrusaSlicer | ||
| Configurations | Single pellet headSingle filament headDual filament heads, IDEX |
Single pellet headSingle filament headDual filament heads, IDEX |
Single pellet headSingle filament headDual filament heads, IDEX |
| Delivery | Self-assembly kit, flat-packedAssembly service available: delivered assembled and tested in a wooden crate | Made to orderAbout 9 weeks from deposit, 50% deposit, balance before delivery | |
| Warranty | 12-month warranty, lifetime support, extended warranty available | ||
| MAMA-1000 page → | MAMA-1700 page → | MAMA XL-3000 page → | |
Swipe the table sideways. The first column stays in place.
MAMA configurations are quoted per project: printer, pellet dryer, pellet mixer, air filter, spare-parts kit, pigments and kickstart feedstock. Ask sales for a quote.
Found your machine?
The configurator prices every add-on for your model. For a site-planning question or a part you are not sure fits, talk to a Modix application engineer.
