The World's
Longest-Format
FDM 3D Printer

The premium hotend for industrial-grade materials. All-metal construction handles the most demanding engineering polymers — PEEK, Ultem, PEI and CF-filled compounds — where standard hotends fail.

Key Features

• All-metal hotend — no PTFE anywhere in the heat path
• Up to 450°C for PEEK, Ultem, Nylon & high-temp composites
• Bi-metal heatbreak minimises heat creep and jams
• Integrated clog detector for automatic recovery
• Gen 4 slide-in carriage — hotend swaps take minutes

Specifications

Snap-off part removal with zero tools. The spring-steel PEI plate flexes to release even large, high-adhesion prints — no prying, no scraping, no waiting to cool.

Key Features

• 660×660 mm coverage for the full BIG-180X print bed
• Parts pop off with a simple flex — no scraper needed
• PEI texture gives excellent first-layer adhesion
• Spring-steel plate snaps onto permanent magnetic base
• Compatible with PLA, PETG, ABS, ASA, Nylon & more

Specifications

Three-stage filtration captures ultra-fine particles, fumes and VOCs generated during printing. Essential for enclosed production spaces and office environments where air quality matters.

Filtration Stages

• Pre-filter — captures coarse particles; replace every ~100 print hours
• HEPA H14 — 99.997% efficiency at 0.3 microns for ultra-fine particles
• Active Carbon — adsorbs VOCs, chemical fumes & odors

Specifications

Fully automatic, zero-maintenance inline drying using molecular sieve technology. Continuously removes moisture during printing — critical for consistent quality with Nylon, PC, PETG and water-soluble supports.

Key Features

• Fits two 5 kg spools or one 8 kg spool simultaneously
• Molecular sieve — never needs replacing (unlike silica gel)
• Two-stage cycle: passive adsorption + active moisture exhaust
• Remains effective during power outages (adsorption stage)
• Works with all FDM printer brands
• Doubles as dry storage/dry box between print jobs

Specifications

Key Features

• Independent X-axis movement — zero cross-contamination between materials
• Water-soluble supports dissolve completely for clean internal channels
• Duplication mode: print two identical parts at the same time
• Mirror mode: print symmetric left/right pairs in one job
• Includes secondary Griffin print head + PTFE reel

Automated nozzle alignment for IDEX users. Eliminates the guesswork from dual-head offset calibration — the tool probes both nozzles and calculates precise XYZ offsets automatically, with no manual test prints required.

Key Features

• Fully hands-free calibration procedure
• Automatic XYZ offset measurement for both print heads
• No manual trial-and-error calibration prints needed
• Essential accessory for any IDEX setup

Maximize throughput on large structural parts. The High-Flow hotend pairs an 80W heater with a 1mm nozzle for significantly higher extrusion rates — ideal for large prototypes, tooling and production parts where speed outweighs fine detail.

Key Features

• 1 mm nozzle for maximum volumetric extrusion
• 80W heater for rapid thermal recovery at speed
• HF heat-block maintains stable temperatures during fast moves
• Drop-in replacement for the standard Griffin hotend

Specifications

For parts that demand fine detail and tight tolerances. Layer heights down to 50 microns — ideal for small functional parts, intricate prototypes and any print where surface quality and dimensional accuracy are critical.

Key Features

• 50-micron minimum layer height capability
• Tight-tolerance nozzle for dimensional accuracy
• Ideal for small detailed parts and high-accuracy prototypes
• Drop-in upgrade for the standard Griffin print head

Specifications

A complete ready-to-swap hotend set so you can keep printing through maintenance with zero downtime. Swap the entire hotend in minutes and service the old one at your workbench.

What's Included

• Bi-metal heatbreak
• Heat block
• 0.4 mm nozzle
• 50W heater cartridge
• PT-1000 thermistor

Complete nozzle range for the Griffin print head. Choose size to match your print requirements — finer detail or faster output. Note: 0.4, 0.6 and 0.8 mm are already included with the printer.

Essential for abrasive and high-temperature filaments. Hardened steel withstands carbon fiber, glass fiber, wood-fill and similar composites that destroy standard brass nozzles within hours of use.

Front-mounted articulating touchscreen with large emergency stop button and frontal power switch. Ergonomic machine control at the front of the printer — no more reaching inside the frame.

Key Features

• Articulating arm — angle the screen to your preferred position
• Large emergency stop button for immediate machine halt
• Front-facing power switch for convenient on/off
• Gen 4 compatible — designed for BIG-180X V4 electronics

Replacement filter media for the Modix Active Air Filter. Regular replacement maintains peak filtration performance — pre-filters load quickly in high-throughput environments.

What's Included

• 5× pre-filter (replace approx. every 100 print hours)
• 1× HEPA + active carbon combo filter (replace annually)

Spare PEI build surface for the BIG-180X. The printer ships with one PEI sheet; order 3 pieces for full bed coverage. Not needed if you have the Magnetic Bed add-on.

The dissolving agent for Modix soluble support filament. Mix with water and submerge completed prints to cleanly remove support structures from complex geometries — no manual removal needed.

How It Works

• Mix solution with water in a suitable container
• Submerge printed part for the recommended soak time
• Supports dissolve completely — leaving a clean finished surface
• Used together with Modix Soluble Filament & IDEX add-on

Print intricate water-soluble supports for complex geometries. Used with the IDEX dual print-head — print part and supports simultaneously, then dissolve the supports in water + Soluble Solution for a perfectly clean finish.

Key Benefits

• Supports dissolve in water + soluble solution — zero manual removal
• Enables complex internal cavities and deep undercuts
• Requires IDEX dual extrusion setup
• Leaves a smooth finish on all support contact surfaces

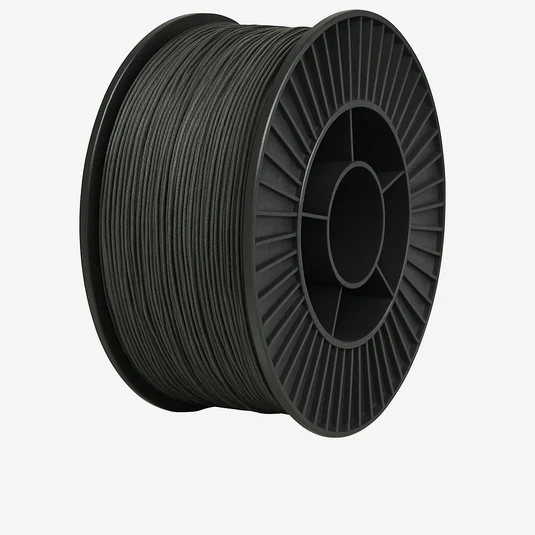

Carbon fiber reinforced PETG. Stiffer and lighter than standard PETG with excellent chemical resistance — ideal for structural brackets, functional prototypes and lightweight engineering parts.

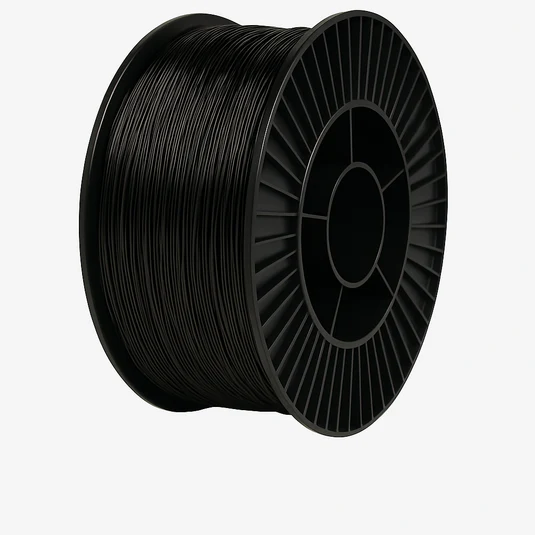

A versatile engineering filament combining ease of printing with solid mechanical properties. Tough, slightly flexible and chemical resistant — the workhorse material for general-purpose functional parts.

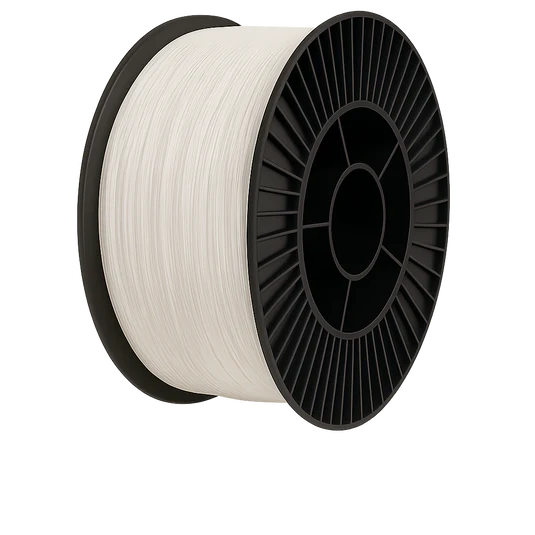

The most accessible FDM material. Low warp, easy to print and available in many colors — perfect for rapid prototyping, concept models and general-purpose parts that don't require high heat or chemical resistance.

Expert guidance from the Modix engineering team to optimise your print workflow. Ideal for new users setting up their first industrial print jobs or experienced users targeting a specific material or geometry challenge.

What's Included

• 3 hours of video call support with a Modix engineer
• Design optimisation for large-format FDM printing
• Slicer settings configuration for your specific materials
• Material selection guidance for your application

12-month warranty extension starting from the expiry of the standard manufacturer's warranty. Recommended for production environments where unplanned downtime is costly.

• Full 12-month coverage after standard warranty expires
• Covers manufacturing defects and component failures
• Support access via Modix customer success team

Additional 12-month extension after the 2nd year warranty. Maximum long-term coverage for production-critical environments where the printer runs continuously.

• 12-month coverage extending from the 2nd year warranty
• Maximum 3-year total warranty coverage
• Ideal for high-utilisation production environments

Print large parts in hours, not days. The Griffin Ultra print head delivers extrusion rates up to 0.5 kg/hour with layer heights up to 1.2 mm and wide extrusion beads — purpose-built for high-throughput large-format production.

Key Capabilities

• Extrusion rate up to 0.5 kg/hour — roughly 5× a standard hotend
• Layer heights up to 1.2 mm for ultra-fast structural printing
• High-flow heat block with 80W heater for sustained thermal stability
• 1.0 mm nozzle standard — scales from detail to speed on demand
• Reduces multi-day jobs to single-shift prints

When Speed Matters

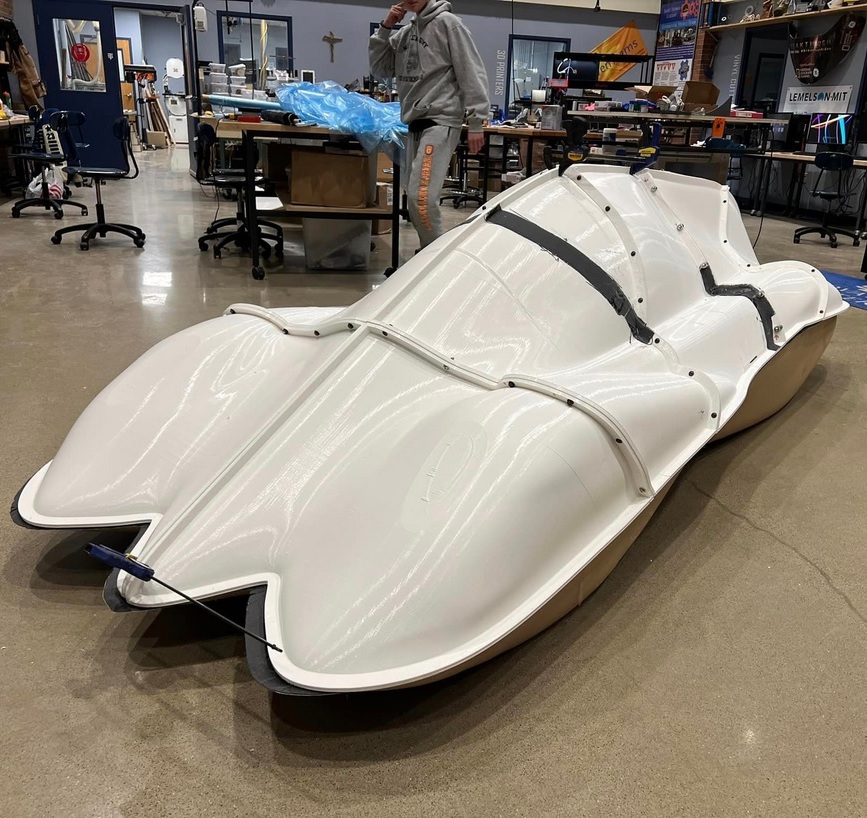

Industrial fixtures, large molds, tooling masters and prototypes that used to take 3–5 days can be completed overnight. With a 1,800 mm print volume and 0.5 kg/hr throughput, the BIG-180X with Griffin Ultra redefines what's possible in a single shift.

Independent dual extrusion (IDEX) unlocks geometries that are simply impossible with a single head. Print structural material and water-soluble supports simultaneously — then dissolve away the supports for a perfectly clean finish on internal channels, deep undercuts and complex cavities.

IDEX Print Modes

• Support mode — print part + soluble supports simultaneously; dissolve cleanly in water solution
• Duplication mode — print two identical parts at the same time, doubling throughput
• Mirror mode — produce symmetric left/right pairs in a single job
• Single mode — standard single-head operation when the second head isn't needed

The BIG-180X handles the full spectrum of engineering polymers — from workhorse PETG and Nylon to high-performance PEEK, Ultem and carbon-fiber composites. Moisture control and the right hotend are the keys to reliable results.

Supported Material Categories

• CF & GF composites (CF-PETg, CF-Nylon) — requires hardened steel nozzle; excellent stiffness-to-weight ratio
• High-temp polymers (PEEK, Ultem, PEI) — requires Griffin Ultra all-metal hotend up to 450°C
• Moisture-sensitive filaments (Nylon, PC, PETG) — inline Filament Dryer removes moisture during printing for consistent results
• Soluble supports — print alongside structural material with IDEX; dissolve cleanly in water solution
• Standard materials (PLA, PETG, ABS, ASA) — all run reliably on the standard Griffin hotend

Inline Filament Drying

Moisture is the #1 cause of print failures with engineering materials. The Modix Filament Dryer uses molecular sieve technology to continuously remove moisture during printing — no manual intervention needed for long industrial print runs.

Buying a BIG-180X is not a one-time decision locked to today's requirements. The printer is architected as an open, modular platform — add capabilities as your needs grow, upgrade components as technology advances, and maximise long-term ROI.

Available Add-ons & Upgrades

• IDEX Dual Print Head — unlock dual-material and soluble-support printing at any time
• Griffin Ultra Hotend — upgrade to high-speed, high-temperature capability post-purchase
• Magnetic Flexible Bed — snap-off PEI build plate for zero-tool part removal
• Active Air Filter — add industrial-grade 3-stage filtration for enclosed spaces
• Filament Dryer — inline moisture removal for engineering polymers
• Tilt Screen & E-Stop — ergonomic front-mounted control panel

Open Architecture

The Duet motion controller, open firmware, and standard mechanical interfaces mean you're never locked in. Upgrade the hotend, swap the bed surface, add a second extruder — without buying a new printer.

One printer, four print heads — each optimised for a different production priority. Mix and match to cover the full range from rapid bulk throughput to tight-tolerance detail work, and from standard polymers to 450°C engineering materials.

Griffin Standard (Included)

• All-round hotend for PLA, PETG, ABS, ASA and Nylon
• Ships with 0.4 / 0.6 / 0.8 mm nozzles included
• Max temp 280°C — handles most FDM materials reliably

Griffin Ultra (+$1,100)

• All-metal hotend up to 450°C — PEEK, Ultem, PEI, CF composites
• Bi-metal heatbreak; 50W heater; integrated clog detector
• Designed for demanding engineering polymers where PTFE fails

Griffin High-Flow (+$350)

• 1 mm nozzle + 80W heater for maximum volumetric throughput
• Rapid prototyping, large tooling and structural parts at speed

Griffin High-Resolution (+$130)

• 50-micron minimum layer height for fine detail and tight tolerances
• Ideal for small functional parts and high-accuracy prototypes

The BIG-180X is built on open standards. Use any filament brand, integrate with any slicer, access all firmware settings, and modify the machine to fit your workflow — no proprietary walls, no forced subscriptions.

What "Open" Means in Practice

• Any slicer — Cura, PrusaSlicer, Simplify3D, IdeaMaker or any GCode-based tool; Modix provides profiles for all major slicers
• Any filament — 1.75 mm filament from any manufacturer; no proprietary spools or RFID chips
• Duet controller — industry-standard RepRapFirmware with a fully documented API; tune every parameter, write custom macros, integrate with your factory systems
• Open frame — standard M5 T-slot extrusions; mount custom tooling, cameras, sensors or fixtures without needing Modix approval
• Community-backed — large Modix user community sharing profiles, macros and mods online

Duet Motion Controller

Powered by Duet (UK), the same controller trusted by research labs and production facilities worldwide. Browser-based interface, extensive documentation, and a thriving community ensure you're never dependent on proprietary support.

A large-format printer is only as good as its calibration. The BIG-180X ships with an integrated suite of calibration tools — from automatic bed leveling across the full 1,800 mm length to hands-free IDEX dual-head alignment — so every print starts from a verified baseline.

Automatic Bed Leveling

• Probes the full 660 × 660 mm bed area automatically
• Mesh compensation corrects for any surface variation across the large bed
• Re-calibrate in minutes before any critical job
• Works seamlessly with the Duet controller's mesh grid compensation

IDEX Calibration Tool (+$250)

• Fully automated XYZ offset measurement for both print heads
• No manual trial-and-error calibration prints required
• Probes both nozzles and calculates precise offsets automatically
• Essential accessory for any dual-extrusion setup

Why It Matters on a 1,800 mm Machine

At 1.8 meters, even a 0.1 mm bed variance across the length compounds across hundreds of layers. The mesh leveling system ensures that the first layer is consistent from one end of the part to the other — the foundation of repeatable, production-quality results.

The BIG-180X is engineered for continuous production — not occasional use. Industrial-grade motion components, an Alcoa aircraft-aluminum frame, and a proven mechanical architecture deliver the stability and accuracy that large-format printing demands.

Motion System

• HIWIN linear rails — the same rails used in CNC machines and semiconductor equipment; designed for years of continuous duty-cycle operation
• Precision ground lead screws on the Z-axis for consistent layer height across the full travel
• Low-backlash motion throughout — critical for dimensional accuracy at 1.8 m scale

Frame & Structure

• Alcoa 6-series aluminum extrusions — aircraft-grade alloy, dimensionally stable and resistant to thermal expansion
• Rigid welded gantry design — no flex or resonance artifacts at the print head
• Industrial powder-coat finish — resistant to the heat, dust and solvents of a production environment

Proven Architecture

The BIG-180X's mechanical platform has been refined across multiple generations and hundreds of installations. The design prioritises serviceability — standard hardware throughout, documented maintenance procedures, and a global spare parts supply ensure long machine life.

Industrial 3D printing is complex. Modix provides the human expertise and online resources to make sure your investment runs at full capacity — from first installation through every production challenge that follows.

Responsive Technical Support

• Dedicated support team with direct access to the engineering team that built the printer
• Video calls when issues need live troubleshooting — not just ticket queues
• Timely responses — typical first response within one business day
• Support in English and Hebrew; growing multilingual capacity

Online Resources

• Modix Wiki — comprehensive documentation covering assembly, calibration, materials, slicing profiles and maintenance
• Video library — step-by-step guides for every common procedure, from bed leveling to hotend swaps
• User community — active forum of Modix users sharing print profiles, mods and real-world solutions

Professional Services Add-on

For users who want to move fast, the 3-hour Professional Services package delivers direct access to a Modix application engineer — design optimisation for large-format FDM, material selection guidance and custom slicer profile setup for your specific application.

Long prints are the BIG-180X's purpose — but they're also where most failures happen. The built-in reliability sensors watch every centimeter of filament flow so problems are caught in seconds, not hours in.

Why it matters on a large-format printer

A 10-hour print on a 1,800 mm part failing at hour 9 is a costly disaster. The clog detector runs a continuous comparison between how much filament the extruder motor is commanded to push and how much actually moves — catching deviations the moment they occur, triggering a pause before a bad layer gets buried under 50 more.

What it detects

• Runout — spool runs empty mid-print; sensor triggers a filament-change pause before a gap layer is laid down
• Under-extrusion — a layer deposits less material than commanded (partial clog, worn gear, slipping filament); detected as a deficit between feed commands and actual movement
• Full clog — the nozzle or heatbreak blocks completely; motor commands continue but filament movement stops, triggering an immediate pause

How it works

The system compares the stepper motor's extrude commands against a dedicated filament-motion sensor. Any sustained mismatch beyond a configurable threshold triggers a pause and on-screen alert — giving you time to clear the issue and resume rather than scrapping the part.
