Modix Large Scale 3D Printers
Print volume is no longer a limit!
Modix develops heavy duty, expandable, large format 3D printers:
- Big60 V2- Print volume: 610x610x610mm from 3,500 USD.
- 120X – Print Volume of 1200x610x610mm from 6,000 USD
Based on Big60 V2, available also as an upgrade for Big60.
- Premium components!
- High flow E3D volcano hotend & Titan Extruder.
- Robust motion system – Hiwin motion rails and Gates belts.
- Self assembly kits & customizable platform.
- Single or dual print head
- Optional closed enclosure
- Automatic bed leveling with 100 probing points.
Premium Components - Heavy Duty Design - Modular Platform
HIWIN Linear Rails
Precision is the name of the game with genuine Hiwin motion rails. Made in Taiwan.
E3D Geared Extruder
E3D V6 Volcano & Titan extruder are the standard for high quality. Made in the UK.
IGUS Shielded Wiring
Professional signal cables provide maximum reliability. Made in Germany.
Geared Z Axis
Precision lead screws powered by a belt gear allow for layer heights as small as 0.5 Microns. This provides extremely high print resolutions!
Precision Milled Bed
Print bed is an Alcoa Mic6 milled cast aluminum tooling plate. Made in the USA.

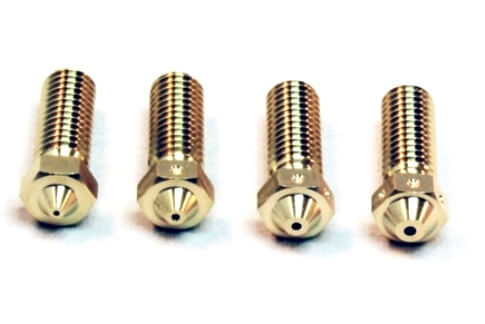

Large Nozzle Selection
E3D Volcano high flow hotend offers a large selection of nozzle sizes ranging from 0.4, 0.6, 0.8, 1.0 & 1.2 mm
Any Filament Vendor
Use filaments from any vendor at any size. Filament runout sensor will alert when empty.
Any Slicing Software
Use any slicing software you desire, including, Slic3r, Cura and Simplify3d.
Optional Cosed Enclosure
A closed chamber allows for maximum heat retention around the printed part. This is critical for ABS printing.
Modular T Profiles System
4040 modular profile system provides rigidity, easy assembly & easy customization.
Download Data Sheet:
Engineer. Mark Swinford
Rotairtech, Inc. USA
Mr. Lazar Jovic, 3D Maker Zone
Amsterdam, The Netherlands
Mr. Ivan Samila,
One Step Beyond
Big60 Review by Mr. Brandon hart,
Johann van der Merwe
3D printing expert
Dr. Mikkel Wagner,
Mechanical Engineer, SBC Industries
France (Turn on translation)
Mr. Mougammandou Rafi
Painting and post processing expert
Mr. Patrick Laroche
Learn How it Works
Modix 120X large 3d printer demonstration at the TCT show, UK.
Big60 Version 1 assembly process highlights. It is very much the same with Version 2.
Big60 Version 2 high speed printing of a large 3D model.
Large Scale 3D Printing Use Cases
1.6 meter long canon restoration
Made in Ireland
Enclosure parts for robots
Made in Germany
Motorcycle motor cover
Made in Czech Republic
Bronze cast mold
Made in Turkey
Good-Year Farm Tire prototype
Made in USA
Large concrete cutting blade cover
Made in Israel
Large PCB Manufacturing Jig
Made in France
Tall Prosthetic Leg Cover
Made in Portugal
Among Our Customers:
Firefighting Trucks manufacturer, Turkey
Tier-1 Automotive supplier, USA
High speed super cars manufacturer, Sweden
Armored vehicle manufacturer, Canada
Major automotive aluminum supplier, USA
Heavy duty trucks manufacturer, USA
Get our new product Overview:
The product overview includes in-depth technical review, updated specs and answers to frequently asked questions. Including how to print in high temperature, remote Control, software Comparability and more.
